Datumaro

Table of contents

• Concept
• Design
• RC 1 vision

Concept

Datumaro is:

• a tool to build composite datasets and iterate over them
• a tool to create and maintain datasets
  • Version control of annotations and images
  • Publication (with removal of sensitive information)
  • Editing
  • Joining and splitting
  • Exporting, format changing
  • Image preprocessing
• a dataset storage
• a tool to debug datasets
  • A network can be used to generate informative data subsets (e.g. with false-positives) to be analyzed further

Requirements

• User interfaces
  • a library
  • a console tool with visualization means
• Targets: single datasets, composite datasets, single images / videos
• Built-in support for well-known annotation formats and datasets: CVAT, COCO, PASCAL VOC, Cityscapes, ImageNet
• Extensibility with user-provided components
• Lightweightness - it should be easy to start working with Datumaro
  • Minimal dependency on environment and configuration
  • It should be easier to use Datumaro than writing own code for computation of statistics or dataset manipulations

Functionality and ideas

• Blur sensitive areas on dataset images
• Dataset annotation filters, relabelling etc.
• Dataset augmentation
• Calculation of statistics:
  • Mean & std, custom stats
• "Edit" command to modify annotations
• Versioning (for images, annotations, subsets, sources etc., comparison)
• Documentation generation
• Provision of iterators for user code
• Dataset building (export in a specific format, indexation, statistics, documentation)
• Dataset exporting to other formats
• Dataset debugging (run inference, generate dataset slices, compute statistics)
• "Explainable AI" - highlight network attention areas (paper)
  • Black-box approach
    • Classification, Detection, Segmentation, Captioning
    • White-box approach

Research topics

• exploration of network prediction uncertainty (aka Bayessian approach) Use case: explanation of network "quality", "stability", "certainty"
• adversarial attacks on networks
• dataset minification / reduction Use case: removal of redundant information to reach the same network quality with lesser training time
• dataset expansion and filtration of additions Use case: add only important data
• guidance for key frame selection for tracking (paper) Use case: more effective annotation, better predictions

Design

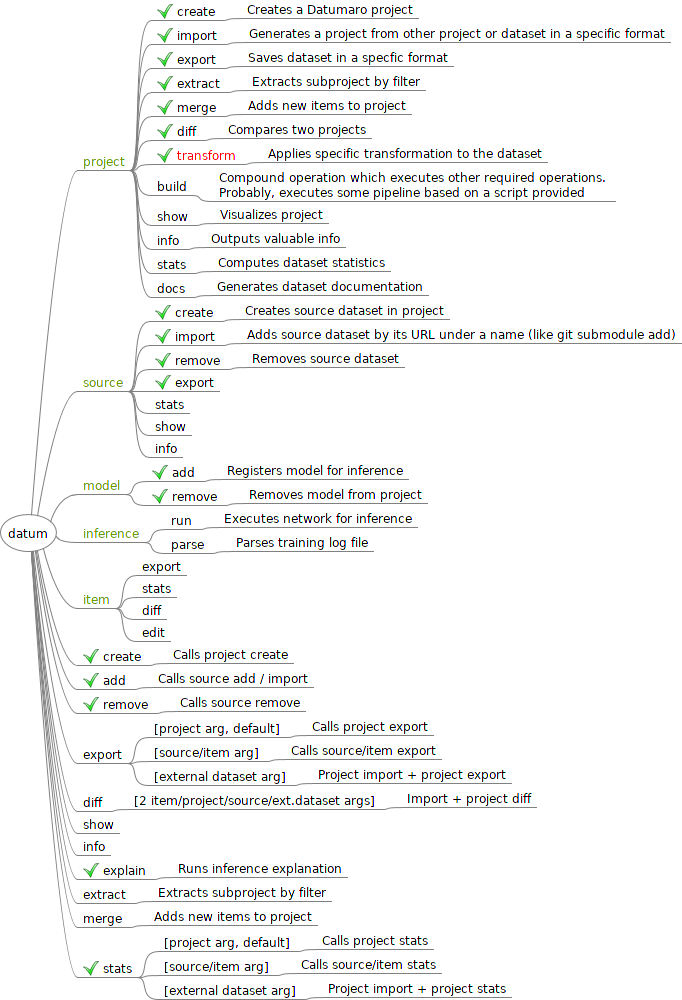

Command-line

Use Docker as an example. Basically, the interface is partitioned on contexts and shortcuts. Contexts are semantically grouped commands, related to a single topic or target. Shortcuts are handy shorter alternatives for the most used commands and also special commands, which are hard to be put into specific context.

• FreeMind tool link

High-level architecture

• Using MVVM UI pattern

Datumaro project and environment structure

├── [datumaro module]
└── [project folder]
    ├── .datumaro/
    │   ├── config.yml
    │   ├── .git/
    │   ├── importers/
    │   │   ├── custom_format_importer1.py
    │   │   └── ...
    │   ├── statistics/
    │   │   ├── custom_statistic1.py
    │   │   └── ...
    │   ├── visualizers/
    │   │   ├── custom_visualizer1.py
    │   │   └── ...
    │   └── extractors/
    │       ├── custom_extractor1.py
    │       └── ...
    └── sources/
        ├── source1
        └── ...

RC 1 vision

In the first version Datumaro should be a project manager for CVAT. It should only consume data from CVAT. The collected dataset can be downloaded by user to be operated on with Datumaro CLI.

        User
          |
          v
 +------------------+
 |       CVAT       |
 +--------v---------+       +------------------+       +--------------+
 | Datumaro module  | ----> | Datumaro project | <---> | Datumaro CLI | <--- User
 +------------------+       +------------------+       +--------------+

Interfaces

• Python API for user code
  • Installation as a package
• A command-line tool for dataset manipulations

Features

• Dataset format support (reading, exporting)

  • Own format
  • COCO
  • PASCAL VOC
  • Cityscapes
  • ImageNet
  • CVAT

• Dataset visualization (show)

  • Ability to visualize a dataset
    • with TensorBoard

• Calculation of statistics for datasets

  • Pixel mean, std
  • Object counts (detection scenario)
  • Image-Class distribution (classification scenario)
  • Pixel-Class distribution (segmentation scenario)
  • Image clusters
  • Custom statistics

• Dataset building

  • Composite dataset building
  • Annotation remapping
  • Subset splitting
  • Dataset filtering (extract)
  • Dataset merging (merge)
  • Dataset item editing (edit)

• Dataset comparison (diff)

  • Annotation-annotation comparison
  • Annotation-inference comparison
  • Annotation quality estimation (for CVAT)
    • Provide a simple method to check annotation quality with a model and generate summary

• Dataset and model debugging

  • Inference explanation (explain)
  • Black-box approach (RISE paper)
  • Ability to run a model on a dataset and read the results

• CVAT-integration features

  • Task export
    • Datumaro project export
    • Dataset export
    • Original raw data (images, a video file) can be downloaded (exported) together with annotations or just have links on CVAT server (in the future support S3, etc)
      • Be able to use local files instead of remote links
        • Specify cache directory
  • Use case "annotate for model training"
    • create a task
    • annotate
    • export the task
    • convert to a training format
    • train a DL model
  • Use case "annotate and estimate quality"
    • create a task
    • annotate
    • estimate quality of annotations

Optional features

• Dataset publishing

  • Versioning (for annotations, subsets, sources, etc.)
  • Blur sensitive areas on images
  • Tracking of legal information
  • Documentation generation

• Dataset building

  • Dataset minification / Extraction of the most representative subset
    • Use case: generate low-precision calibration dataset

• Dataset and model debugging

  • Training visualization
  • Inference explanation (explain)
    • White-box approach

Properties

• Lightweightness
• Modularity
• Extensibility
