Module

• Written on typescript
• Contains the class Canvas and the Enum Rotation

Creation

Canvas is created by using constructor:

    const { Canvas } = require('./canvas');
    const canvas = new Canvas();

• Canvas has transparent background

Canvas itself handles:

• Shape context menu (PKM)
• Image moving (mousedrag)
• Image resizing (mousewheel)
• Image fit (dblclick)
• Remove point (PKM)
• Polyshape editing (Shift + LKM)

API

Methods

All methods are sync.

    html() => canvas HTML element
    setup(const FrameData: frameData, [ObjectState]) => undefined

    activate(const number: clientID, const number: attributeID = null) => undefined // select if can't activate
    rotate(const Rotation: Rotation.CLOCKWISE) => undefined
    focus(const number: clientID, const number: padding) => undefined
    fit() => undefined
    grid(stepX, stepY, color, opacity) => undefined

    draw(shapeType, numberOfPoints = null, initializeState = null) => ObjectState
    split(const boolean: enabled = false) => ObjectState || undefined
    group(const boolean: enabled = false) => [ObjectState] || undefined
    merge(const boolean: enabled = false) => [ObjectState] || undefined

    cancel() => undefined

CSS Classes/IDs

• Each drawn object (tag, shape, track) has id canvas_object_{objectState.id}
• Drawn shapes and tracks have classes canvas_shape, canvas_shape_activated, canvas_shape_grouping, canvas_shape_merging, canvas_shape_drawing
• Tags has a class canvas_tag
• Canvas image has ID canvas_image

Events

Standard JS events are used.

    - canvas.setup
    - canvas.activated => ObjectState
    - canvas.deactivated
    - canvas.moved => [ObjectState], x, y
    - canvas.drawn => ObjectState
    - canvas.edited => ObjectState
    - canvas.splitted => ObjectState
    - canvas.groupped => [ObjectState]
    - canvas.merged => [ObjectState]

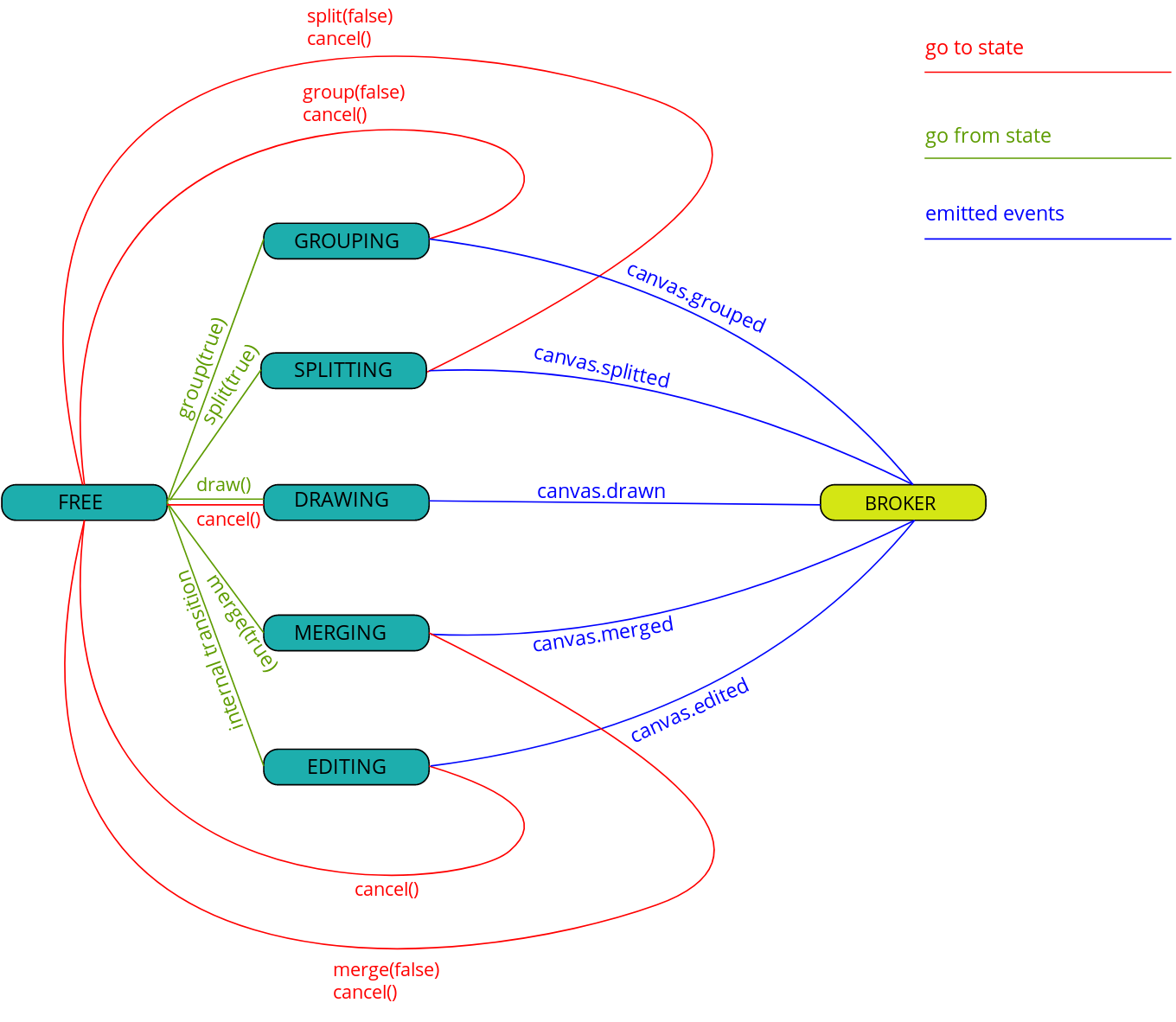

States

API Reaction

	FREE	GROUPING	SPLITTING	DRAWING	MERGING	EDITING
html()	+	+	+	+	+	+
setup()	+	+	+	+	+	-
activate()	+	-	-	-	-	-
rotate()	+	+	+	+	+	+
focus()	+	+	+	+	+	+
fit()	+	+	+	+	+	+
grid()	+	+	+	+	+	+
adjust()	+	+	+	+	+	+
draw()	+	-	-	-	-	-
split()	+	-	+	-	-	-
group	+	+	-	-	-	-
merge()	+	-	-	-	+	-
cancel()	-	+	+	+	+	+
